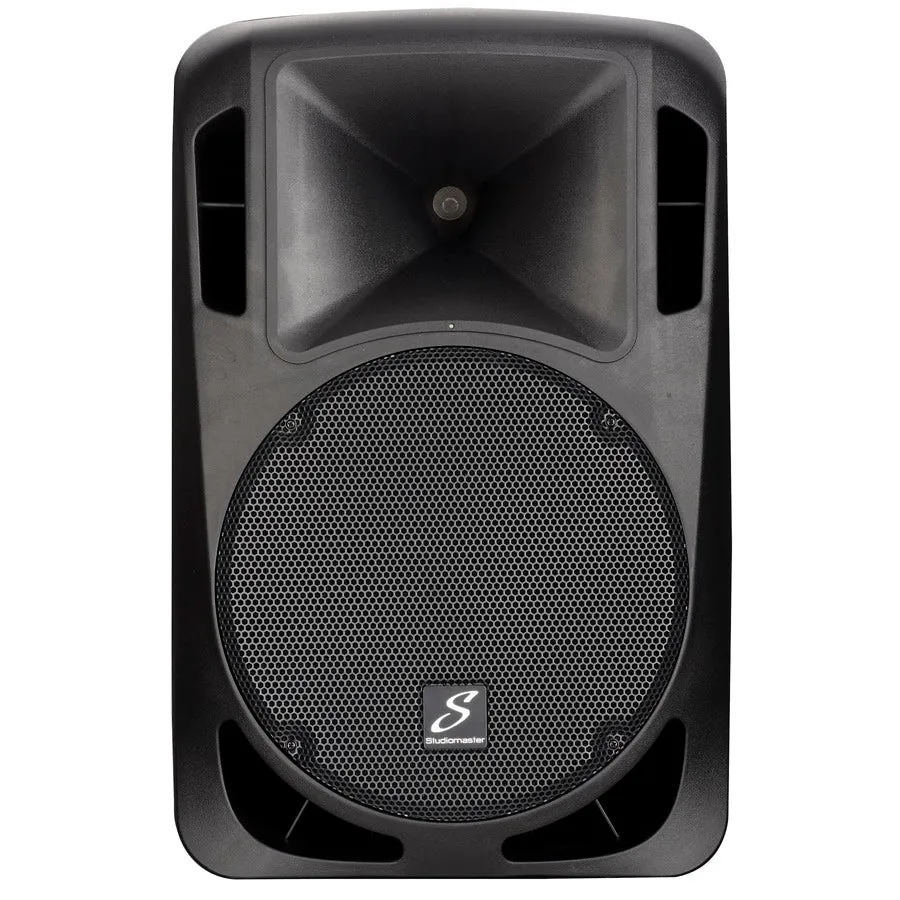

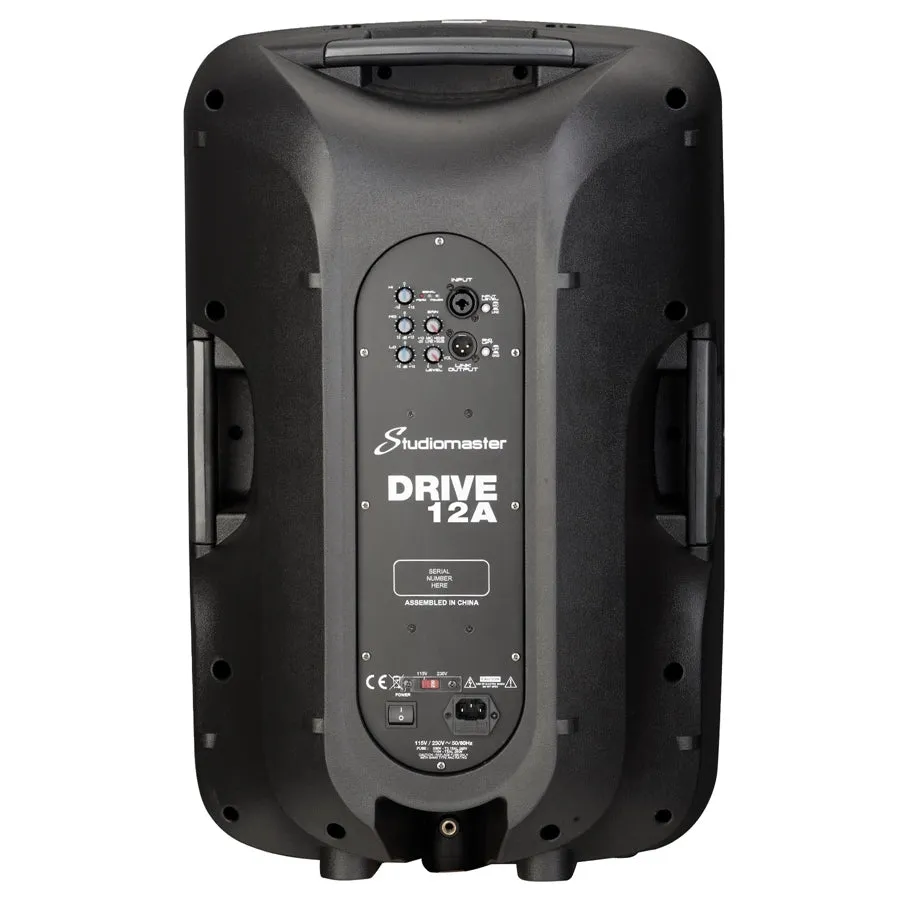

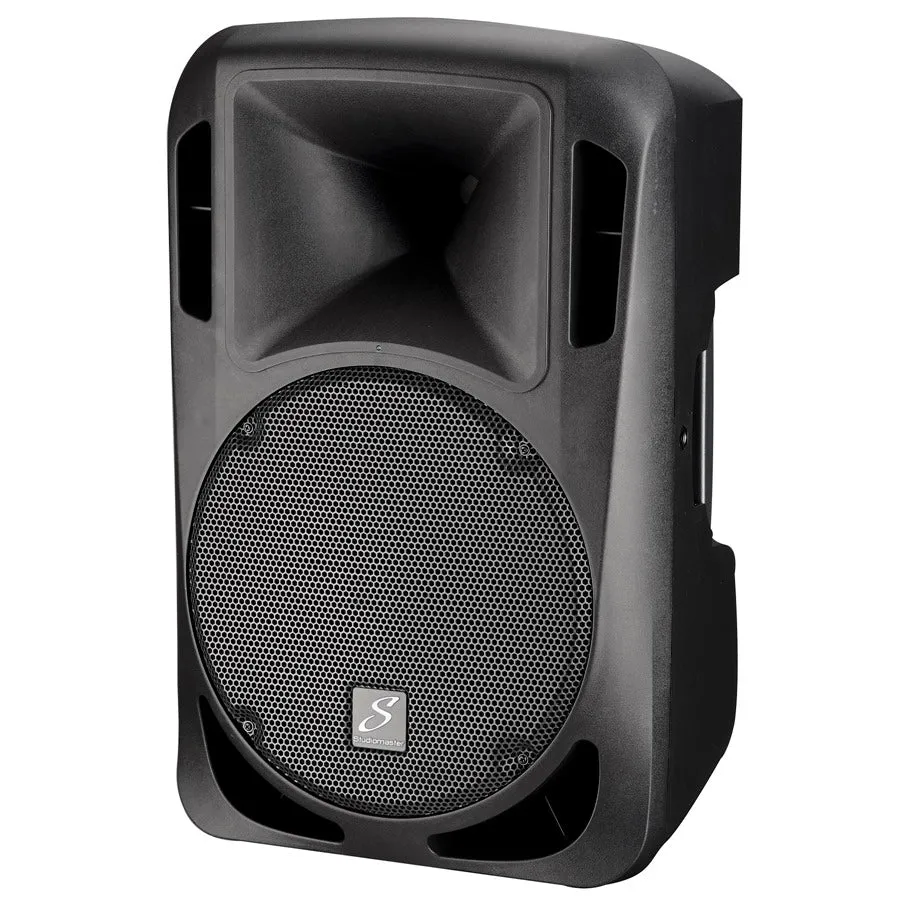

Studiomaster's Drive 12A is a 12″ two way active full range cabinet, packing 310w RMS Class D amplification in a high quality injection moulded cabinet which is durable and lightweight. The Drive 12A features a 3 band EQ, Combined XLR and jack input, gain and level controls, and link output.
Specification:
- Format: 12″ two way active full range cabinet
- Frequency response (-10dB): 50Hz – 20kHz
- Input sensitivity (Line): 0dBu
- Input sensitivity (Mic): -36dBu
- Max SPL: 126dB
- Amp Power: 620W(PGM), 310W(RMS) / 250W(LF) 60(HF)
- LF: 12″ woofer / 50mm voice coil
- HF: 34mm compression driver / 1″ throat
- Coverage (HxV): 80° x 40°
- Crossover: 2.0kHz
- Input Connection: Jack/XLR
- Power voltage: 115V / 230V
- Hanging system: 5x M10 hanging points
- Dimension W*H*D: 390 x 630 x 360 (mm)
- Weight: 19KG
